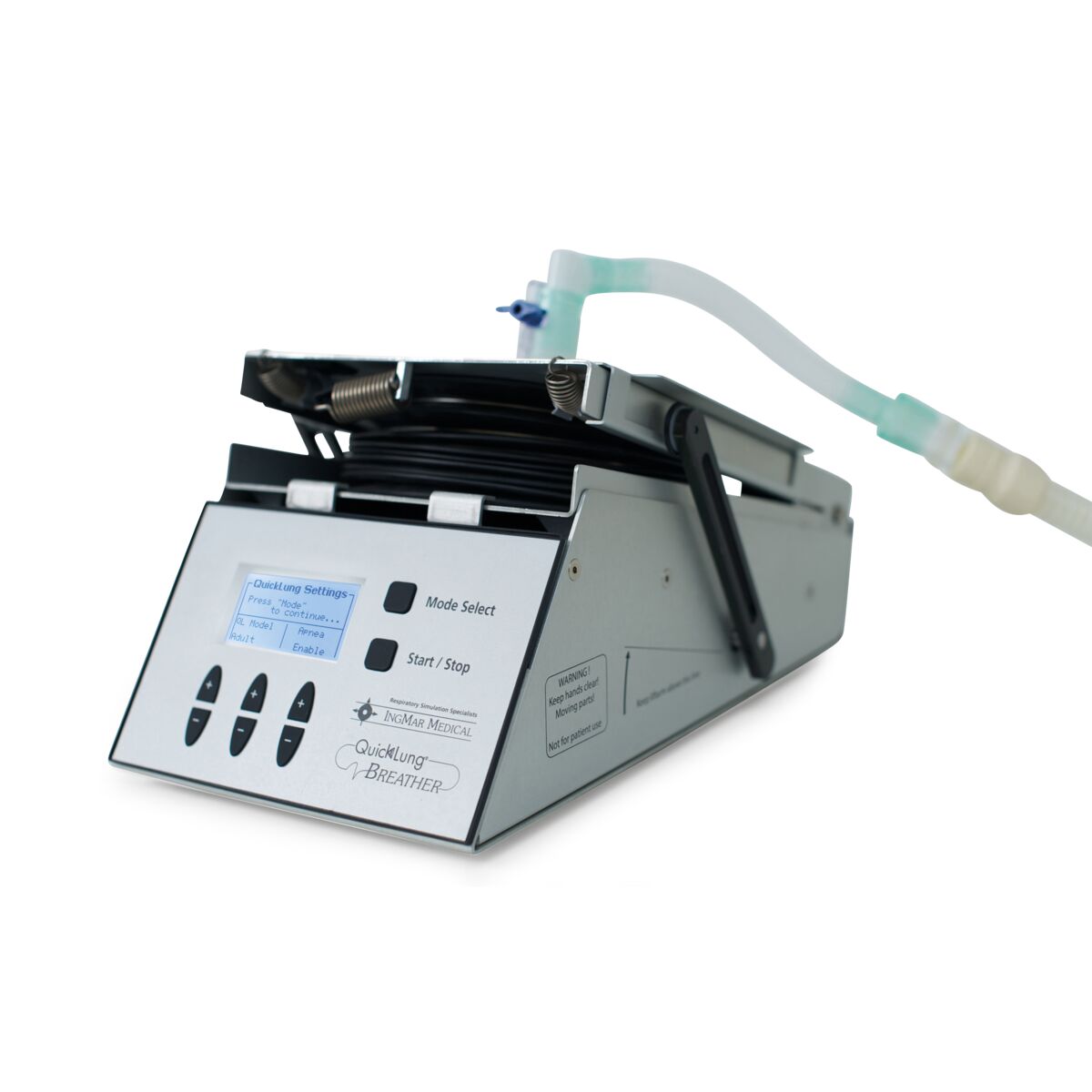

QuickLung Breather System, adult

The QuickLung Breather System is commonly used for ventilator management training, demonstration, and testing.

It is an effective tool to simulate a spontaneously breathing patient at an affordable price.

Based on the IngMar Medical QuickLung or QuickLung Jr., the QuickLung Breather opens up new opportunities to demonstrate and test ventilator triggering and important modes of ventilation such as SIMV, Pressure Support and PAV.

User can quickly create a patient scenario by using the built-in controls on the QuickLung Breather simply by selecting a breathing mode (Eupnea, Cheyne-Stokes, Biot's, Kussmaul or Apneusis) and by customizing breath parameters such as resistance, compliance, breath rate, volume, and I:E ratio.

Upgrade your existing QuickLung in seconds.

The QuickLung can be easily mounted and detached from the Breather for maximum versatility.

QuickLung Features:

• Use with any real ventilator
• Simulate a wide range of patient scenarios including ARDS (adult or pediatric), ventilator dyssynchrony, breath stacking, pediatric asthma exacerbation, COPD, and more
• Realistic ventilator triggering
• 5 pre-programmed breathing patterns available: Eupnea, Cheyne-Stokes, Biot's, Kussmaul or Apneusis

Technical Details

Compliance settings - 50, 20, 10 mL/cm H2O (15, 6, 3 mL/H2O for Junior)
Resistance settings - 5, 20, 50 cm H2O /L/s
Max tidal volume - 1.2 L (400 mL for Jr.)
Max spontaneous tidal volume - 720 mL (215 mL for Jr.)
Flow - 20 to 80 L/min
Breath rate - 4 to 60 breaths per minute
Inspiratory time - 20% to 80%

Delivery Content

• QuickLung Precision Test Lung
• QuickLung Breather base
• Power Supply
• Customer Care Kit containing additional connectors and instructions
• User Guide
