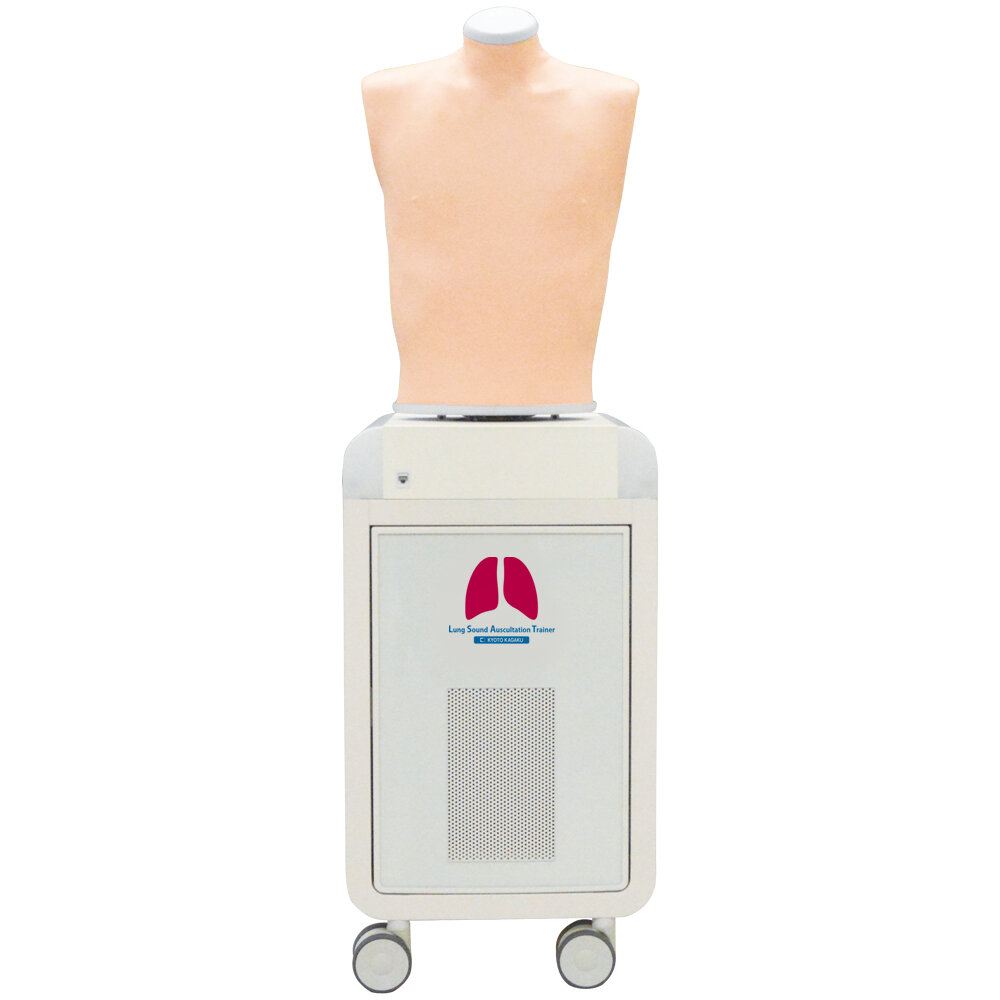

Used by 96% of medical faculties in Japan, LSAT is now renewed and improved!
In just a few taps away, improve lung assessment skills by combining theory and practice with real lung sound recordings and case information.
Features:
Based on acoustic analysis of recorded lungs sounds, each are classified according the American Thoracic Society standards.
With this approach, lung sounds are categorized as continuous (wheezes, rhonchi, or stridor) or discontinuous (crackles).
Wireless multi-unit operation
Simulaneous anterior and posterior auscultation
LED light panel to indicate inspiration and expiration
Training skills / Applications:
Lung sound auscultation from anterior and posterior
Case / Pathology:
Background heart sounds are available in 5 volume levels.
Normal
standard / mildly strong sounds / mildly rapid / loud heart sounds
Coarse crackles
right lower area / both lower area / right upper and middle area / left lower area / both upper area / whole area
Wheezes
upper area 600-700Hz / upper area 350-450Hz / upper area 200-1000Hz
Miscellaneous continuous sounds
stridors / squawks
Abnormal
weak: left lower area / weak: left whole area (adhesion) / weak: left whole area(pneumothorax) / absent: right middle and lower areas / weak: right whole area / absent: right whole area / weak: whole area / bronchial breathing
Fine crackles
both lower area / both middle lower area / whole area (IPF) / whole area (NSIP)
Rhonchi
trachea and upper area 150-250Hz / trachea and upper area 150-450Hz(polyphonic) / trachea and upper area 80-120Hz / whole area 80-200Hz
Miscellaneous
pleural friction rubs: right lower and middle area / pleural friction rubs: left lower area / Hamman's sign / Vocal fremitus
Set includes:
1 LSAT2 main unit
1 external speaker (incorporated in the main unit)
1 control PC
1 LSAT T-shirt
1 instruction manual
Size (approx.):
W39 x D49 x H127cm / W15.3 x D19.3 x H50in
Weight (approx.):
55kg / 121lbs
Packing weight (approx.):
164kg / 361.6lbs
Materials:
Soft resin
Latex free
CE certified/CE Certification?:
Yes
