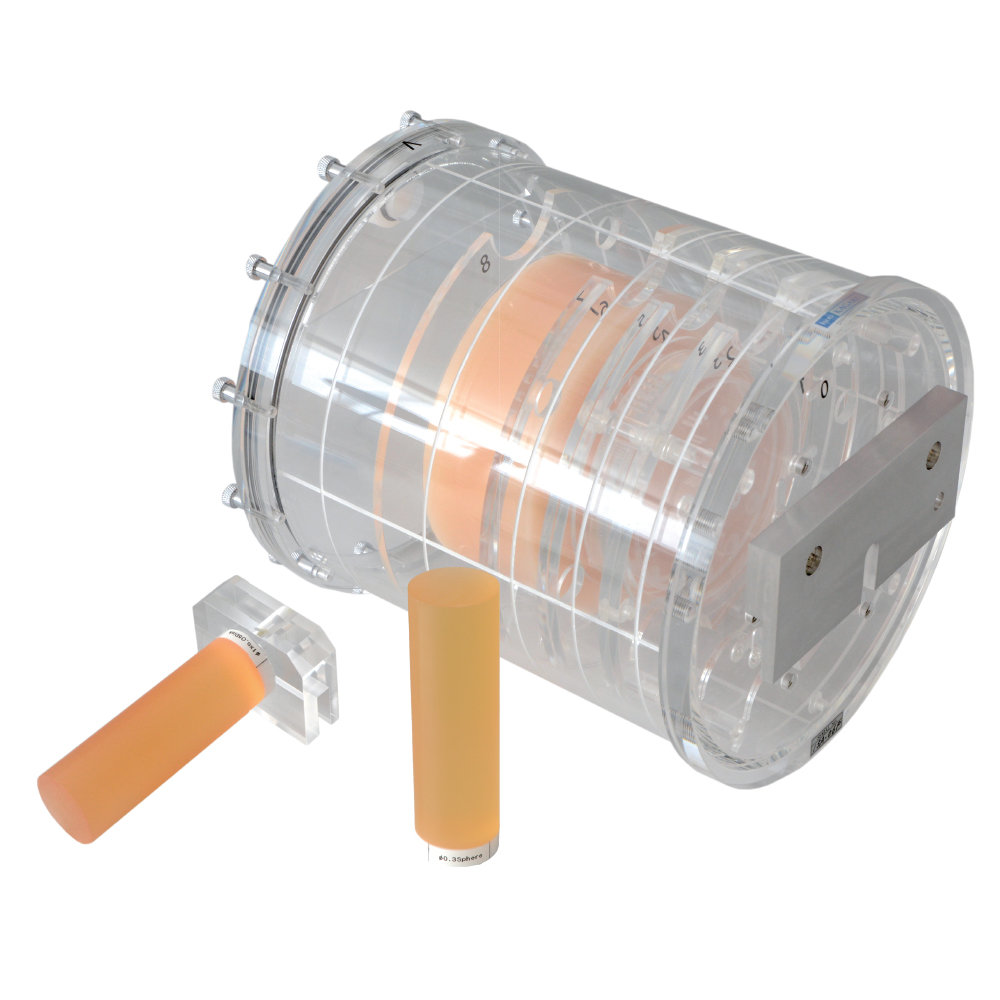

CT QA Phantom JCT

Renovated CT QA phantom for initial test at the time of reception, as well as follow-up periodical quality check of CT scanners

Features:

1. The phantom can be used for initial and follow-up QA tests listed below, described in JIS Z 4752-3-5: 2008 (IEC 61223-3-5: 2004) and Z 4752-2-6: 2012 (IEC 61223-2-6: 2006)

2. Conforming to JIS Z 4923:2015

Training skills / Applications:

Axial scan: Slice thickness/spatial resolution/low contrast resolution/noise/mean

Helical scan: Slice thickness HU number/uniformity

Set includes:

1 cylindrical container?ifixing screw?j

1 slice thickness unit (axial)

1 spatial resolution unit

1 repeated pattern unit

1 low contrast resolution unit

2 slice thickness unit (helical)

1 fixture for the slice thick ness unit

1 fixture for the cylindrical container

1 Angle adjustment holder (table-top type)

storage case

manual

Size (approx.):

200 ?~ 200mm

Weight (approx.):

3kg

Materials:

Acrylic resin

APPLICATIONS:

CT
