Dynamic Heart and Lung Phantom

The motion of diaphragm and tumor, and the realistic heart motions provide various solutions for clinical research

Features:

The phantom represents movement of the heart, lungs and pulmonary nodule

The pulmonary nodule and diaphragm move independently with the respiratory cycle -Three dimensional movement of the pulmonary nodule (linearly and rotationally) -Motion disc represents respiratory movement of abdomen

The elastic heart represents systolic and diastolic motion

Training skills / Applications:

Respiratory gating CT

Dosimetry

Radiation therapy

Case / Pathology:

Pulmonary nodule

stenosis of coronary arteries

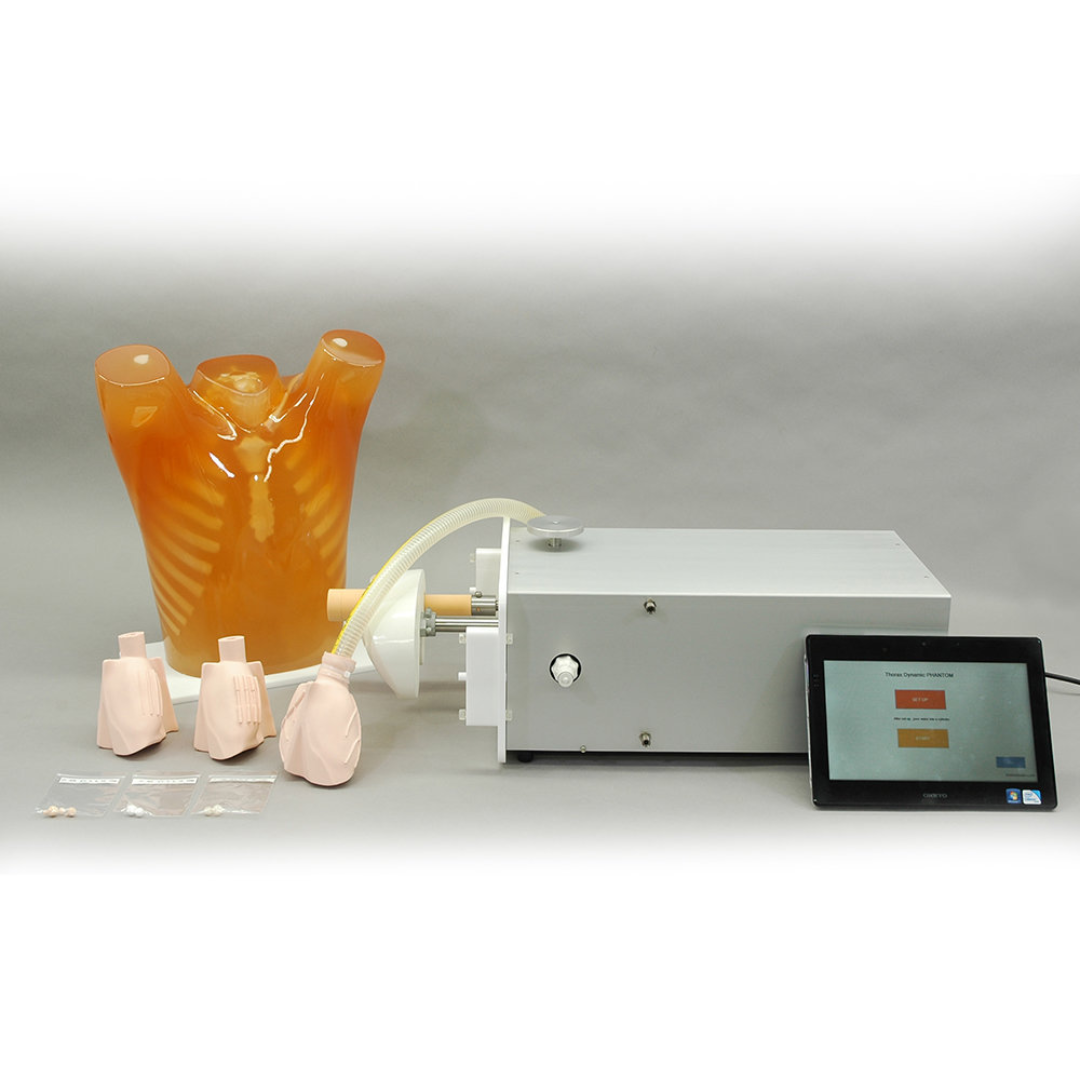

Set includes:

1 drive unit

1 nodule rotation unit

1 diaphragm block

1 chest phantom

3 types of heart unit

1 set of simulated tumors (15 types)

1 tablet PC

1 storage case

Packing size (approx.):

W103 x D70 x H37 cm / W40.6 x D27.6 x H14.7 in

Power source:

AC110V-240V 50/60Hz

Materials:

Chest phantom : Urethan resin

ANATOMY:

Synthetic bones of the chest

Heart with coronary artery

Diaphragm

Other features:

The coronary arteries including stenotic examples are shown -The phantom can be connected to ECG for ECG gating

CONTROLLABLE PARAMETERS:

Heart rate: 30-120 times/min

Ejection volume: 60, 70, 80, 90, 100ml ef rate: 30%, 35%, 40%, 45%, 50%, 55%, 60%

Respiratory rate: 6-24 cycles/min

Linear movement of nodule unit: 8-64mm/ 0-1.5 in

Rotation range of nodule unit: 50-70 degrees

CE certified/CE Certification?:

No
