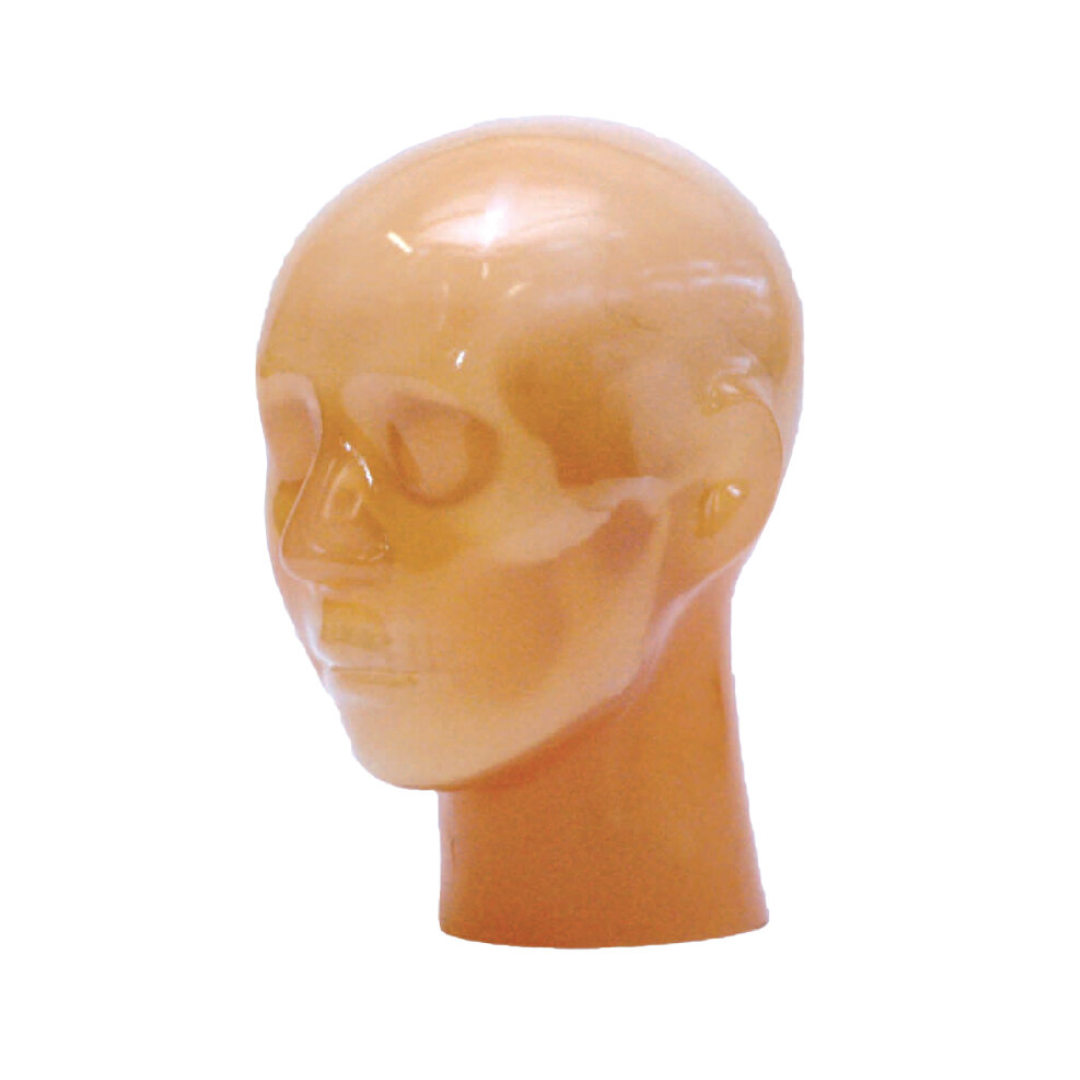

Angiographic CT Head Phantom ACS

Kyoto Kagakus best-selling CT head phantom

A new variation added: Head Phantom for MECT, which contains arteries of innovative water equivalent material

Features:

1.Three variations of head phantoms with different features for arteries to meet your requirements:
CT/ Angiography / Multi energy CT /

2. Contrast-enhanced left cerebral arteries are three dimensionally embedded in the brain

Training skills / Applications:

CT

Angiography

Multi energy CT

Set includes:

1 head phantom

1 storage case

1 set of sample X-ray data (DVD)

manual

Size (approx.):

H33cm / 13in

Packing size (approx.):

W46 x D31 x H32cm / W18.1 x D12.2 x H12.6in

Weight (approx.):

5.25kg / 11.57lb

Packing weight (approx.):

8kg / 17.6lb

Materials:

Soft tissue: urethane based resin / Cervical vertebrae (C1-C7): epoxy resin

Anatomy:

A synthetic skull

Soft tissue

Simulated arteries with contrast medium

Left anterior cerebral arteries

Left middle cerebral arteries

Internal carotid artery

Diameters of simulated0.5-4.0 mm

Arrangement of arteries are the same for all three types.

HU

Soft tissue 0

Cerebrum 40

Mesencephalon 40

Cerebellum 40

Cerebral ventricles 10

Eye balls 20
