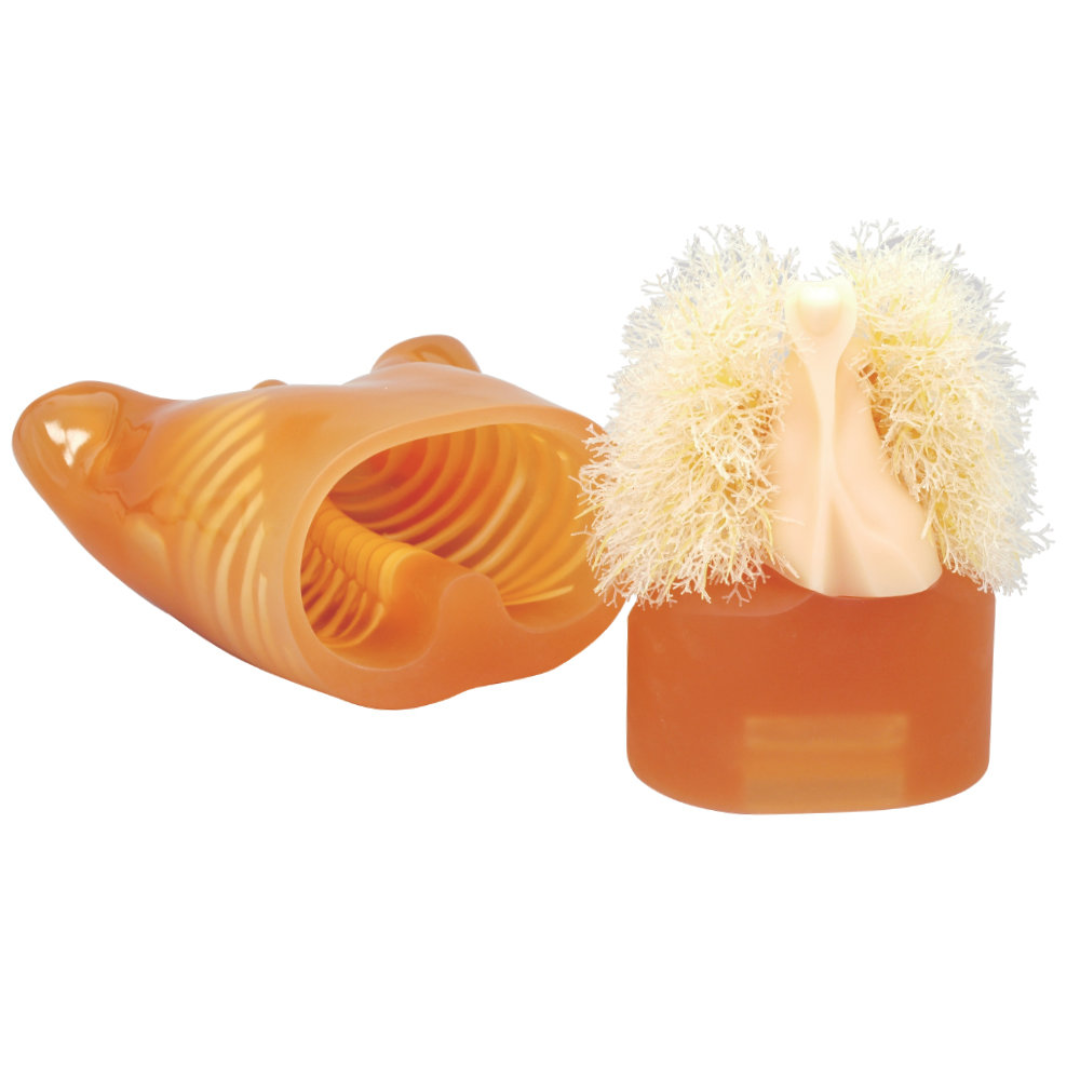

Multipurpose Chest Phantom N1 LUNGMAN

PH-1 is used in a study by the FDA to create a database of CT scans with different scanners and protocols, as a resource for assessment of lung nodule size estimation method.

Features:

1. Radiation absorption and HU number approximate to human body, in an arms-abducted position suits the CT.
2.Simulated tumours and other targets can be attached at any points in the lung fields.
3. Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research.

Set includes:

(41337-100)
1 chest torso / 15 simulated Tumors (15 variations 1 piece each) / 1 set of chest plates / 1 set of sample X-ray data (DVD) / manual
(41337-000)
1 chest torso / 15 simulated Tumors (15 variations 1 piece each) / 1 set of sample X-ray data (DVD) / manual

Size (approx.):

W43xH48cm / W16.9xH18.9in
chest girth 94cm / 37inch

Packing size (approx.):

(41337-000)
W63 x D50 x H29cm / W24.8 x D19.7 x H11.4inch

Weight (approx.):

18kg / 39.6lb

Packing weight (approx.):

25kg / 55.1lb

Materials:

Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31) / *Phantom has no metal parts or liquid structure
